SDLG L989F WHEEL LOADER PARTS CATALOG

Leave a Comment / NEWS / By
4017000024,Clamp4015000426,Washer
4090000176,Rubber Hose4013000370,Nut
4090000194,Rubber Hose29030045671,Motor Pump Pipeline Assembly

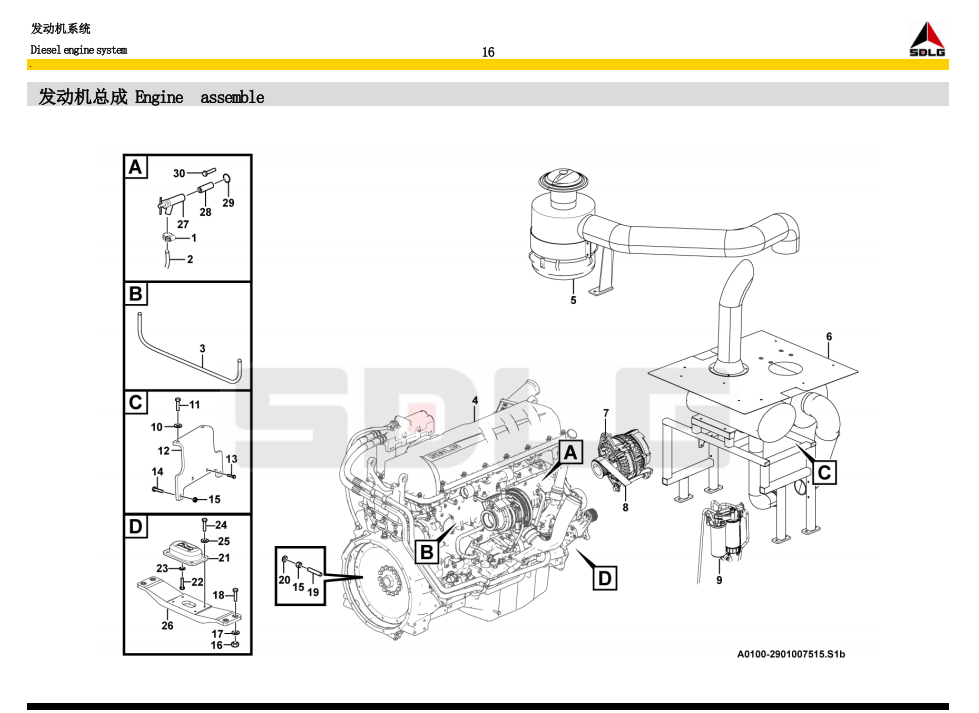

11222791,Engine SD130A29030045011,Pump Outlet Pipe Bracket
29010075181,Oil Bath Air Filter Module4041001005,U-Bolt
29010075201,Intake and Exhaust System4013000373,Nut
29010039041,Engine Electrical Accessories29030025171,Sealing Plate
29010046221,Poly V-Belt29030025181,Door Plate
29010076741,Fuel Supply System29030045841,Drive Axle Cooling Pump Bracket
4015000433,Washer4011001246,Bolt
4011001347,Bolt4011001243,Bolt
29010035101,Bracket4015000427,Washer
4011000601,Bolt29030045011,Pump Outlet Steel Pipe Assembly
4011001280,Bolt29030045031,Pump Inlet Steel Pipe Assembly
4013000370,Nut29030045051,Rear Axle To Pump Steel Pipe Assembly
4013000395,Nut29030045071,Front Axle To Pump Steel Pipe Assembly
4015000436,Washer29030045091,Pump To Rear Axle Filter Steel Pipe Assembly I
29010023391,Stud Bolt29030045111,Pump To Front Axle Filter Steel Pipe Assembly I
4015000025,WasherRV08-20H-6T,Overflow Valve Block
4110001774,Engine Front Shock Absorber29050036741,Gearbox Assembly
4011001349,Bolt4110004055,Gearbox Oil Distributor
4015000435,Washer4110004055,Gearbox Clutch
4011001251,Bolt4110004055,Lubrication Valve
29010030871,Anti-loose Sleeve4110004055,Filter Assembly
29010031031,Beam4110004055,Shift Valve
4120000067,Heater Water Valve4110004055,Gearbox Gear Shaft
29010030601,Heater Connector4110004055,Gearbox Housing
29010030621,O-Ring4190001657,Parking Brake
4011001297,Bolt29060010831,Gear Shift Control Assembly
4017000033,Hose Clamp29070018821,Front Axle Assembly
29010075191,Intake Rubber Hose4110002110,Front Axle Main Reducer
4110001200,T-Type Hoop29080008401,Drive Shaft Assembly
4110002362,Oil Bath Air Filter29090010891,Rear Axle Assembly
4011001240,Bolt4110002111,Rear Axle Main Reducer
29010044671,Pre-filter Bracket29100036041,Hydraulic Oil Tank Assembly
4011001375,Bolt29100034201,Hydraulic Oil Tank
1109250-776/A,Intake Cap Assembly29110013921,Working Pump Assembly
JB/T8870,Heavy Duty Hose Clamp29120041831,Hydraulic Control Assembly
4110002362-020,Housing Assembly29120041841,Hydraulic Main Pipeline
1109076-776,Upper Oil Screw4120003342,Multi-way Valve
1109072-776,Upper Oil Screw Lower End Cover Assembly29120041981,Pilot Control Pipeline
4110002362-085,Hoop Base Assembly29130028841,Lift Cylinder Assembly
1109470-Q720,Clamp Belt Assembly4120009205,Boom Cylinder
1109082-776,Sealing Ring4120009206,Boom Cylinder
1109060Y-776,Lower Oil Screw Assembly29140025691,Bucket Cylinder Assembly
1109081-776,Sealing Ring4120008913,Bucket Cylinder
1109040-776,Lower End Cover Assembly29150034561,Linkage Mechanism
4011001241,Bolt29160010601,Working Device Accessories
4015000428,Washer29190017901,Steering Pump Assembly
11214706,Clamp29200013921,Steering Gear Assembly
4011001279,Bolt29200012941,Steering Gear
4013000373,Nut29200012161,Steering Column Assembly
29010075211,Corrugated Pipe29200013651,Priority Valve
4011001288,Bolt29210011981,Steering Cylinder Assembly
4110003922,Muffler4120008888,Left Steering Cylinder
4011001685,Bolt4120008889,Right Steering Cylinder
4011001238,Bolt29210011751,Diverter Block Assembly
4110001754,Exhaust Tail Pipe29220028741,Service Brake Assembly
29010075221,Upper Cover Plate29220028771,Brake Steel Pipe Assembly
4015000426,Washer29230011591,Parking Brake Assembly
4110001764,Air Filter29240044641,Front Frame
4110000682,Differential Pressure Indicator29250024021,Front Frame Accessories
4110001794,T-Type Hoop29260050921,Rear Frame
29010075262,Bracket29270028511,Rear Frame Accessories
29010075251,Intake Rubber Hose29280016801,Main Counterweight
4110000770,T-Type Hoop29280015861,Battery Fixing Bracket
4011001294,Bolt29280016861,Auxiliary Counterweight
4110001766,Hoop29390003421,Central Lubrication System
11210293,Connector29390003411,Central Lubrication Installation Assembly
22996282,Pressure Switch2939000169,Lubrication Grease Nipple
11215631,Flange Screw29290058391,Cab System
11215630,Lock Nut29290058401,Cab Assembly
4011000307,Bolt29290053011,Cab Body
4015000162,Washer29290052861,Left Door Assembly
4013000007,Nut29290029611,Outer Opening Handle
11219040,Generator29290039611,Interior Assembly
JB6013,Bolt29290032601,Water Spray System
JB982,Washer29300009411,Seat Assembly
JB6013,Bolt4190003195,Seat
JB982,Washer29310031491,Cab Accessories
GB5783,Bolt29350010471,Air Intake System
GB97.1,Washer29320012021,Control Box Assembly
JB1002,Washer29320010191,Armrest Assembly
Hollow Bolt,Hollow Bolt29330092101,Engine Hood Assembly
GB5782,Bolt29330092111,Engine Hood
GB97.1,Washer29340056821,Cover Parts Accessories
11219201,Fuel Combined Filter29340056831,Right Platform Assembly
11210238,Oil-water Separator Filter Element29340054131,Right Ladder
11214500,Main Fuel Filter29340056911,Left Platform Assembly
11218987,Fuel Filter Housing29340053461,Left Ladder Assembly
11212856,Water Collecting Cup29360028181,Logo & Signage
11216877,Plug29350014071,Air Conditioner
11216556,Flat Gasket29350014241,Air Conditioning System
11216523,Flat Gasket4130002904,Evaporator Assembly
11216552,Connector29370029031,Power Electrical Assembly
4011001400,Bolt29410002511,Front Frame Electrical Parts
4015000031,Washer29420005751,Rear Frame Electrical Parts
4015000448,Washer29440002761,Engine Electrical Parts
29020021901,Fuel Tank Assembly29450001051,Hood Electrical Parts
4017000012,Hose Clamp29430008311,Cab Interior Electrical Parts
29020021931,Rubber Hose4130002470,Central Electrical Control Box
4017000005,Hose Clamp29430008331,Cab Exterior Electrical Parts
4110000612,Filler Filter29430007821,Rotary Warning Light
29020010221,Filler Pipe Assembly29170184801,Bucket Assembly
4017000010,Hose Clamp4120009796,Rubber Hose
29020015311,Breathing Rubber Hose4120009801,Rubber Hose
4015000427,Washer4120009803,Rubber Hose
4011001494,Bolt29200012971,Pipe Clip
4015000026,Washer4041000876,Buffer Sleeve
29020009491,Filter Bracket4011001286,Bolt
4110000852,Air Cleaner4015000425,Washer
4120005390,Air Filter Element4013000373,Nut
29020021912,Fuel Tank Body29030045061,Front Axle Oil Return Pipe Assembly I

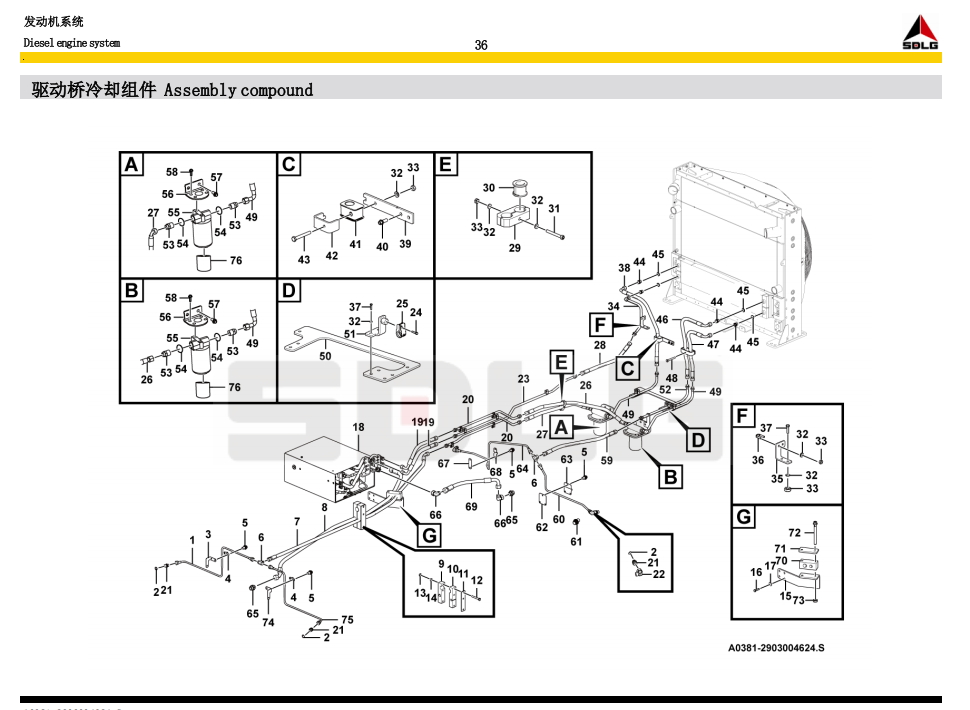

29030046241,Drive Axle Cooling Assembly29030045081,Front Axle Oil Return Pipe Bracket
29030044631,Hydraulic Motor Pipeline Assembly4041001005,U-Bolt
29030045211,Transmission Oil Radiator Pipeline Assembly4011001247,Bolt
29030041171,Water Pipe Assembly4120009799,Rubber Hose
29030041181,Intercooler Pipe Assembly29030045091,Bracket
29030041191,Expansion Tank Assembly4011001301,Bolt
4110003910,Radiator Assembly29200011411,Rubber Pipe Clip
29030041201,Radiator Accessories29200011421,U-Type Fixed Plate
29030023551,Drive Axle Oil Return Pipe II4011001512,Bolt
4030000242,O-Ring4041000109,Straight Connector
29030023631,Right Bracket4030000097,O-Ring
29030023651,Pipe Clip4120009800,Rubber Hose
4011000461,Bolt4120009798,Rubber Hose
4190000284,Three-way Connector4011001587,Bolt
4120009795,Rubber Hose29030045101,Filter To Radiator Steel Pipe Assembly
4120009848,Rubber Hose29030045121,Bracket
29120041951,Rubber Pipe Clip C29030045141,Bracket
29120041961,Rubber Pipe Clip D29030045161,Rear Axle Oil Return Pipe Assembly
29120041971,Pressure Plate C29030026041,Filter Connector
4011000955,Bolt4030000013,O-Ring
4013000370,Nut4110000507,Filter
4015000433,Washer29030026031,Filter Bracket
29030045201,Rubber Hose Bracket II4011000479,Bolt
4011001248,Bolt4011001295,Bolt
4015000426,Washer4120009802,Rubber Hose
29030046251,Drive Axle Cooling Motor Pump Assembly29030023571,Drive Axle Oil Return Pipe III
4120009797,Rubber Hose29030023661,Thermal Switch Connector
29030045021,Pump To Filter Steel Pipe Assembly II29030023691,Pressure Plate
4120002909,Connector29030023701,Pipe Clip
4190000139,Connector29030023591,Drive Axle Oil Return Pipe IV
29030045041,Front Axle Oil Return Pipe Assembly II4120002537,Straight Connector
4011001296,Bolt4190000178,Connector
29030044921,Pipe Clip29030023671,Pressure Plate
4015000425,Washer29030023681,Pipe Clip
29030046261,Adjusting Shim4120009794,Rubber Hose
4011001569,Bolt29120022251,Pipe Clip
29030046271,Pump Inlet Pipe Bracket29120022261,Pressure Plate
4041001000,U-Bolt4011001653,Bolt
4041001001,Base Plate4013000368,Nut
4110000507007,Transmission Oil Filter Element29030023611,Left Bracket
4011001397,Bolt29030023531,Drive Axle Oil Return Pipe I
